New turbo Jumper Ducato Boxer 2.2 HDI Focus C-max Fiesta 1.6 TDCI 74/88/66kW 100/120/90PS 49131-05212 49131-05210 49131-05211 49131-05200 49131-05252 6U3Q6K682AF 6U3Q6K682AE 6U3Q6K682AD 6U3Q6K682AC

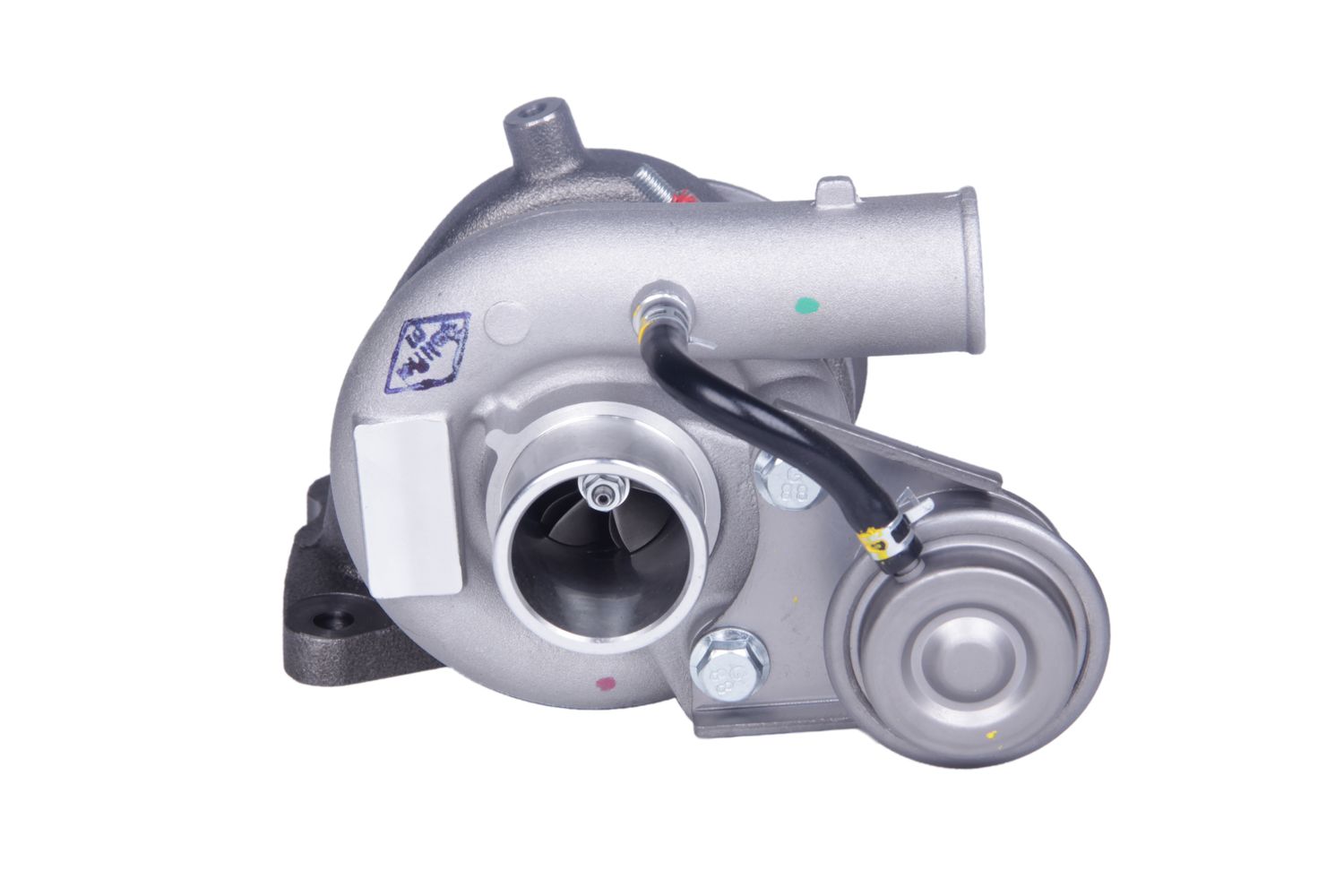

New Turbocharger Replacement – 2.2 HDI / 1.6 TDCi (TD03)

Restore the efficiency and performance of your vehicle with this brand-new premium replacement turbocharger. Engineered for both the high-torque 2.2-liter commercial engines (PSA/Fiat) and the economical 1.6-liter passenger TDCi (Ford) units, this turbo is built to withstand the demanding duty cycles of delivery vans and daily commuters alike.

Detailed Vehicle Compatibility & Power Output

This turbocharger is a direct 1:1 replacement for the following models:

Commercial Vehicles (2.2 HDI / MultiJet):

| Manufacturer | Model | Power Output | Engine Code |

| :--- | :--- | :--- | :--- |

| Citroën | Jumper / Relay | 74kW–88kW / 100–120 PS | 4HV (P22DTE), 4HU |

| Fiat | Ducato III | 74kW / 100 PS | 4HV (MultiJet) |

| Peugeot | Boxer II | 74kW–88kW / 100–120 PS | 4HV (P22DTE), 4HU |

Passenger Vehicles (1.6 TDCi):

| Manufacturer | Model | Power Output | Engine Code |

| :--- | :--- | :--- | :--- |

| Ford | Focus II, C-MAX I, Fiesta V | 66kW / 90 PS | HHJA, HHUB |

Technical Specifications & Cross-Reference

This unit replaces the Mitsubishi TD03 series. Verify compatibility using the following identification numbers:

Key Product Features

• 100% Brand New: Zero-mileage assembly. Unlike remanufactured units, every component—from the heavy-duty turbine housing to the high-speed internal bearings—is factory-new.
• VSR Precision Balancing: Each core is balanced at speeds exceeding 150,000 RPM to eliminate vibration, ensuring silent operation and maximum bearing life.
• Direct Bolt-On Fit: Manufactured to exact OEM dimensions for a seamless installation with original oil lines and exhaust connections.
• Pre-Calibrated Actuator: The mechanical wastegate is factory-set to ensure correct boost pressure, protecting your engine from overboost and ensuring fuel efficiency.

Critical Installation Requirements

Proper installation is vital for the longevity of the TD03 turbocharger, especially in these engine families:

1. Oil & Filter Service: Change the engine oil and filter. Use only high-quality synthetic oil meeting the specific manufacturer requirements (e.g., Ford WSS-M2C913-B/C or PSA B71 2290).
2. Turbo Priming: Before the first start, fill the oil inlet port with clean oil and manually rotate the compressor wheel multiple times to ensure the bearings are not "dry."
3. Inspect Oil Feed Line (Crucial): Especially on the 1.6 TDCi and 2.2 HDI engines, the oil feed pipe and its internal strainer are prone to carbon "coking." Replacing the oil feed pipe is highly recommended to prevent immediate failure.
4. Air Intake Inspection: Ensure the air filter is brand new and the intake hoses are free from debris or oil residue from the previous turbocharger failure.
