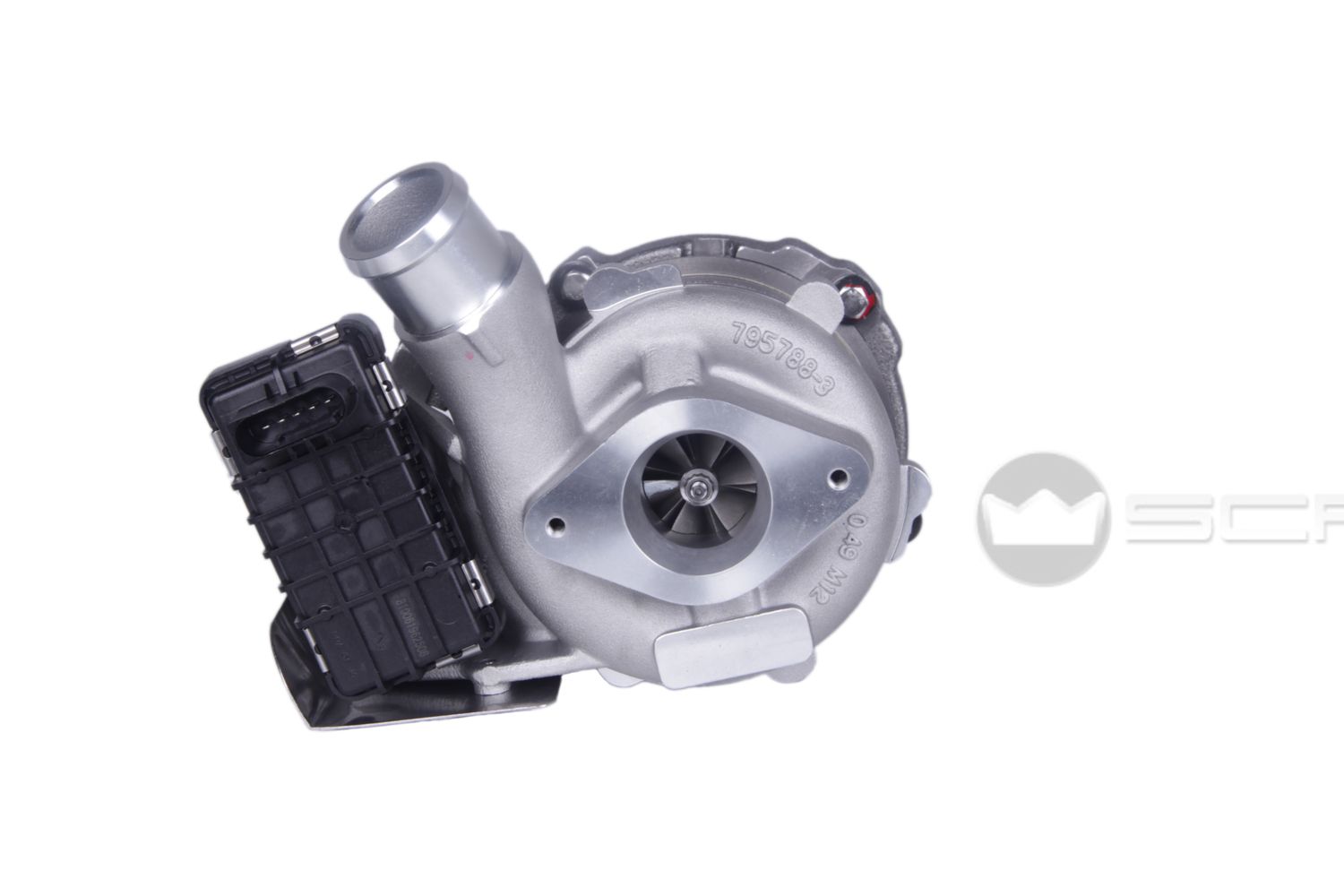

New turbo Ford Transit Ranger 2.2 Tdci GTC1749VZ 787556-0016 787556-0017 787556-0022 787556-5016S 787556-5017S 787556-5022S BK3Q-6K682-CB BK3Q-6K682-CC BK3Q-6K682-PB BK3Q-6K682-PC RMBK3Q6K682CB

New Turbocharger replacment for Ford Transit & Ranger 2.2 TDCi | 100 – 155 HP

This premium-grade replacement turbocharger is engineered to meet the rigorous demands of Ford’s most popular commercial vehicles. Designed for the 2.2 TDCi Duratorq engine series, it features an advanced Variable Nozzle Turbine (VNT) system with an electronic actuator, providing precise boost control across a wide range of power outputs from 100 PS to 155 PS.

Technical Specifications

Vehicle Compatibility

This unit is a direct replacement for the following Ford models (2011 onwards):

• Ford Transit VI & VII: 2.2 TDCi (100 PS, 125 PS, 135 PS, 155 PS)
• Ford Custom / Tourneo Custom: 2.2 TDCi (155 PS)
• Ford Ranger (TKE): 2.2 TDCi (150 PS)

Cross-Reference / Part Numbers

Check the identification plate on your original turbocharger to ensure a 100% match:

Garrett / Manufacturer Part Numbers:

• 787556 Series: 787556-0016, 787556-0017, 787556-0022
• Suffixes: 787556-5016S, 787556-5017S, 787556-5022S
• Other: 129267, 172-05990, T916531, 901194

Ford OE Numbers:

• 1717628, 1719695, 1760759, 1863278, 1899517
• BK3Q-6K682-CB, BK3Q-6K682-CC, BK3Q-6K682-PB, BK3Q-6K682-PC
• RMBK3Q6K682CB

Key Product Features

• Electronic Actuator Calibration: The variable geometry is pre-calibrated with the electronic actuator to ensure immediate synchronization with the Ford ECU—preventing limp mode and "overboost" codes.
• Heavy-Duty Construction: Specifically built to withstand the high vibration and thermal cycling typical of commercial delivery cycles.
• VSR Balanced: Every unit is precision balanced at high speeds to ensure whisper-quiet operation and a long service life under heavy load.
• Direct Fitment: 1:1 geometric match for the original Garrett unit; no modifications to the oil lines or exhaust manifold are required.

⚠️ Crucial Installation Notes for Ford 2.2 TDCi

To ensure the longevity of your new turbocharger, the following steps are mandatory:

1. Oil Feed & Return Lines: Inspect the oil lines for carbonization. On the Transit engine, a partially blocked feed line is a common cause of premature failure.
2. Oil Filter & Fluid: Always perform a full oil and filter change using Ford-approved 5W-30 (WSS-M2C913-C/D) oil.
3. Electronic Actuator: Do not manually force the arm of the electronic actuator, as this can damage the internal gears and void the warranty.
